Pressure Ranges
In bar: 0-0.25 to 0-7 bar
In psi: 0-5 to 0-100 psi

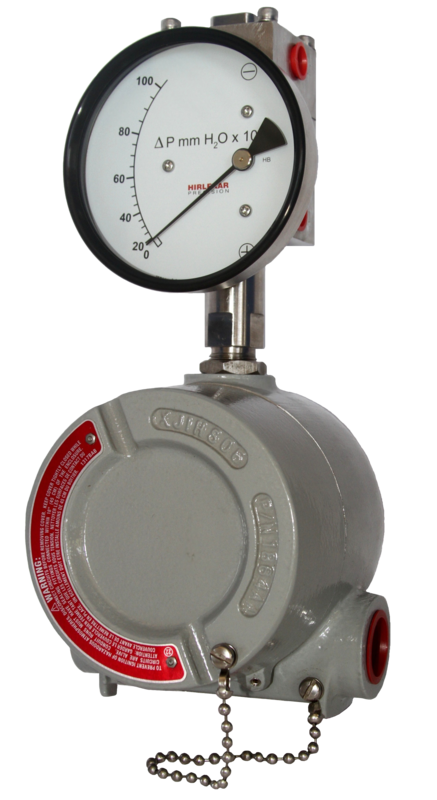

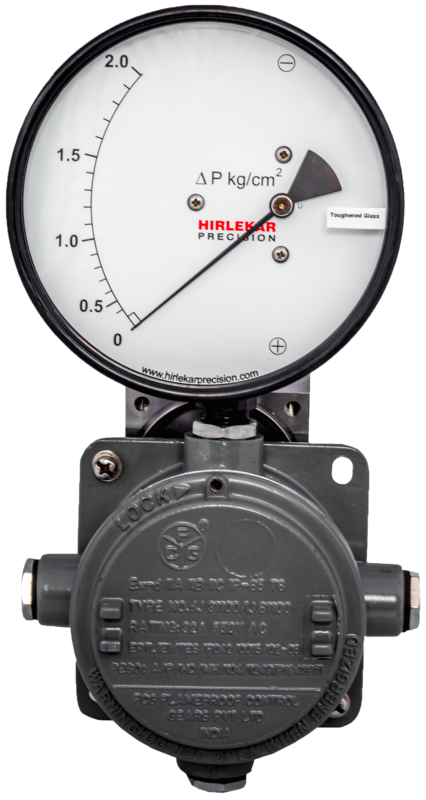

In the Hirlekar Precision Model EX-200 DGR, the movement of the diaphragm is converted into appropriate calibrated rotary movement of the pointer through a magnetic connection. This type of diaphragm model is used in applications where no migration of the media from high pressure side (HP) to low pressure side (LP) is permitted. The explosion proof box manufactured by Akron (USA) is ATEX approved.
| Accuracy | ±2% of the FSD (Ascending) |
| Migration | Zero Migration from high to low port |
| Range | 0-0.25 to 0-7 bar 0-5 to 0-100 psi |
| First marking on scale | 15% of the FSD |
| Sensing element | Diaphragm |
| Wetted Parts | Diaphragm, body material, SS 302 spring & ceramic magnet |
| Case Material | Stainless steel (SS 304) |
| Dial size | Inch: 3.5, 4.0, 4.5, 6.0 mm: 80, 100, 115, 150 |
| Mounting | As per the explosion proof box drawings |
| Maximum working pressure | 200 bar / 3000 psi |
| Maximum process temperature | 80°C/ 175°F |
| Body material | Aluminum, Brass & SS 316 |
| Seals | Buna-N, Viton & EPDM |
| Window | Standard: Float glass Optional: Toughened glass, acrylic & safety glass |
| Connection | Standard: ¼” NPT(F) Optional: ¼” BSP (F) with adaptor |
| Porting | Bottom (right side) & back |
| Over range protection | Up to the max. working pressure from high side only. Never pressurize only LP side beyond 25 bar. |
| Protection for gauge & switch | IP 65 / NEMA-4 |
