Pressure Ranges
0-0.25 to 0-70 bar
0-5 to 0-1050 psi

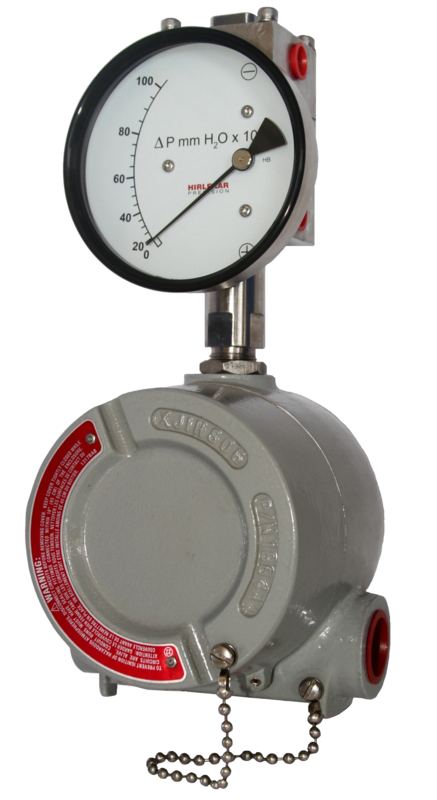

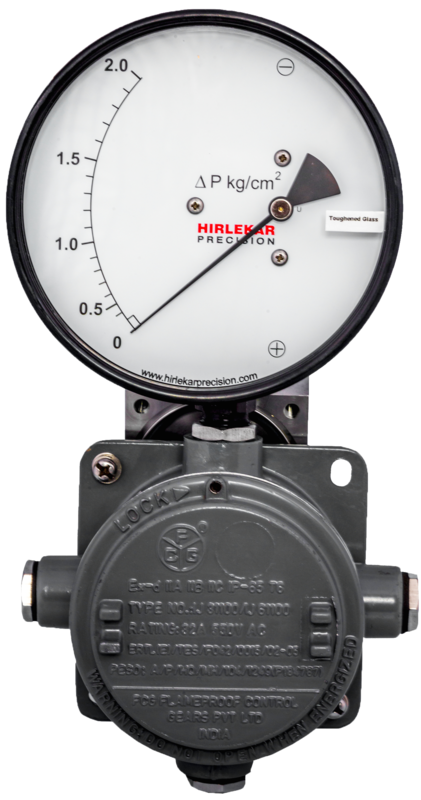

In the Hirlekar Precision Model EX-200 DPG, the movement of the piston is converted into appropriate calibrated rotary movement of the pointer through a magnetic connection. This type of piston model is used in applications where minor migration of the media from high pressure side (HP) to low pressure side (LP) is permitted. The explosion proof box manufactured by Akron (USA) is ATEX approved.
| Accuracy | ±2% of the FSD (Ascending) |
| Migration | Minor from high to low port |
| Range | 0-0.25 to 0-70 bar 0-5 to 0-1050 psi |
| First marking on scale | 20% of the FSD |
| Sensing element | Piston |
| Wetted Parts | Body material, SS 302 spring, ceramic magnet & seals |
| Case Material | Stainless steel (SS 304) |
| Dial size | Inch: 3.5, 4.0, 4.5, 6.0 mm: 80, 100, 115, 150 |
| Mounting | As per the explosion proof box drawings |
| Maximum working pressure | Aluminum & Brass: 200 bar SS & Monel : 400 bar |
| Maximum process temperature | 80°C/ 175°F |
| Body material | Aluminum, Brass & SS 316 |
| Seals | Buna-N, Viton & EPDM ‘O’ Rings |
| Window | Standard: Float glass Optional: Toughened glass, acrylic & safety glass |
| Connection | Standard: ¼” NPT(F) Optional: ¼” BSP (F) |
| Porting | Bottom (right side) & back |
| Over range protection | Up to the max. working pressure from high & low side |
| Protection for gauge & switch | IP 65 / NEMA-4 |
